Mounting

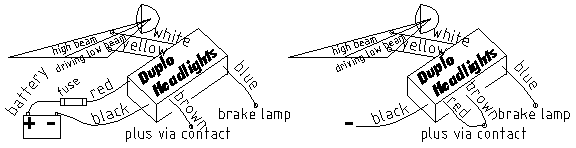

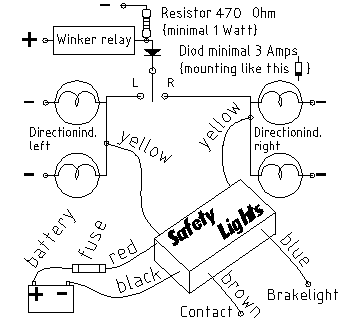

Building in is easy. Follow the instructions on the manual. You need to connect to lamps you know where to find! The scheme for Safety Lights is the above one, below you have the scheme for the Duplo Headlights. Diode and resistor is needed when you do not hear your winker. Honda and BMW most of the time do not need the resistor and diode. The above picture is from the old (0) Safety Lights, the other two (package) are from Safety Lights (1) and the Headlights. You see it only gets smaller.
